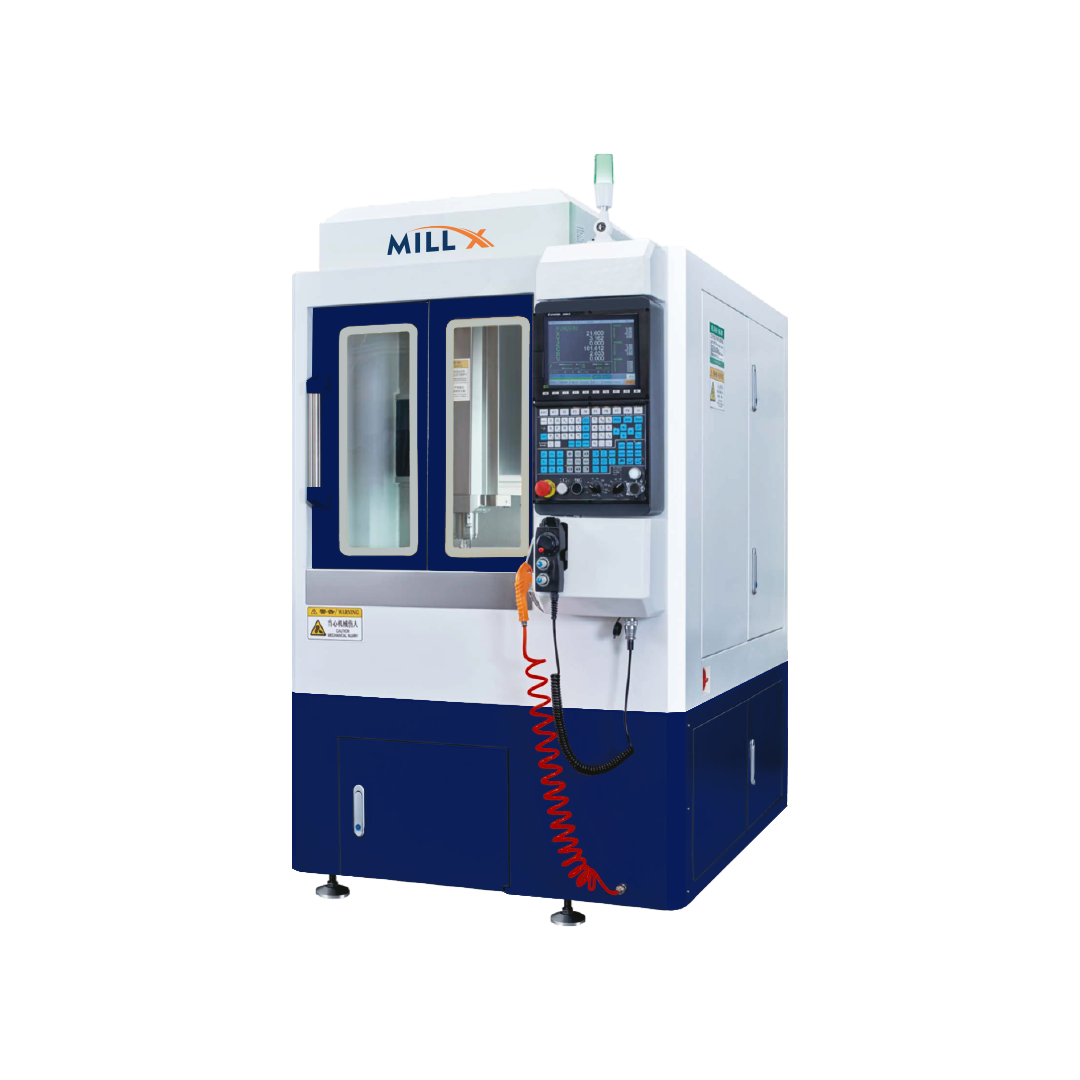

MILL X

Mill X-5 is an high-precision Multi Functional CNC Machine tool for performing engraving and Milling operation In Jewellery manufacturing. The fifth axis (Baxis) is of the original German Alpha brand. Combined with the product from Taiwan on the fourth axis C axis), it forms a precise linkage structure. It adopts a double-support steel frame structure. The internal design of the machine is more streamlined, which makes gold recovery much easier.
MILL X


Main technical parametersMill X-5/380
Spindle power/speed4.0KW/40000rpm
Shank specificationISO20
Tool clamping rangeΦ2-10mm
Fusclage weightApproximately 1.8 tons
XYZ stroke350*200*220mm
Appearance size of machine1100*1550*2100mm
Power configurationThree-phase-four-wire 380V/50H
Machine power7KW

Applications
